UPS-IND RP 1100 Single Phase
Uninterruptible Power Supply (UPS)
UPS-IND RP 1100 Single Phase
Uninterruptible Power Supply (UPS)
1~3 kVA
Capacity+/-1%
Voltage regulation
2 Year Warranty
Compact rack mountable configuration is ideal for data servers. Additional battery packs may be added to suit unique needs. On line, double conversion technology allows for autonomous operation with full protection against dangerous electrical damage.
- On Line Double Conversion
- 0.9 Power Factor
- Battery Bank
- Battery Back Up
- Rack Mount
- SNMP Network Card
Uninterrupted Power
On Line Double Conversion
Guarantees clean and stable voltage output despite irregularities on the input.
0.9 Power Factor
Higher power factor resulting in maximum efficiency and performance of the electrical system.
Battery Bank
Batteries withstand temperatures up to 40ºc and have a life expectancy of over 4 years.
Battery Back Up
Ensures operational continuity with 5 minute standard battery backup time. Optional extended backup time may be added to adjust to specific needs.
Rack Mount

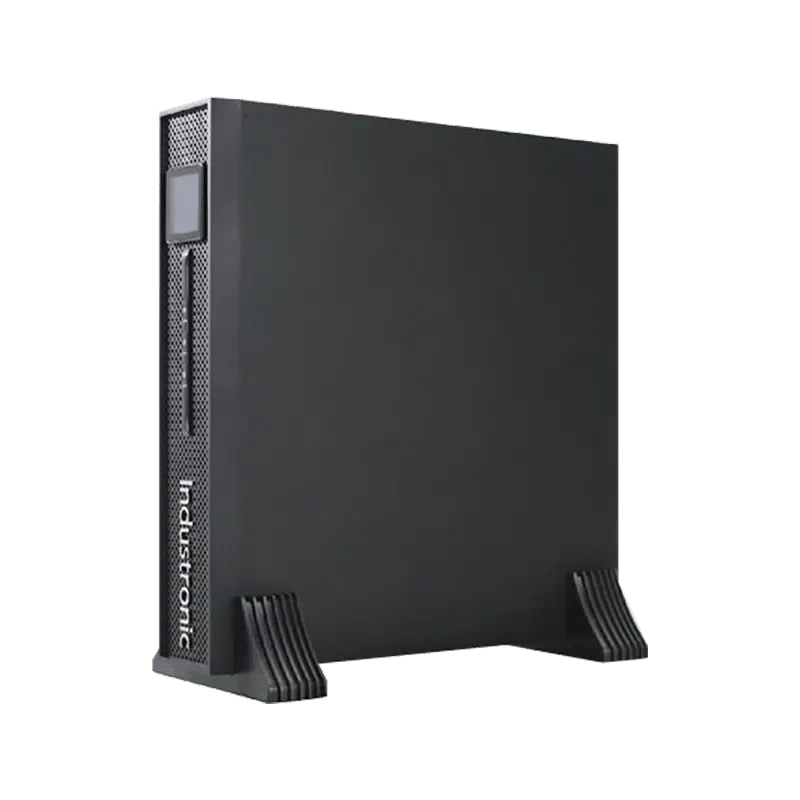

Convenient & sleek design that is mountable in both horizontal and vertical positions with proper ventilation in either installation type. Ideal for data centers, computer rooms, sites and other applications in the data management industry.
SNMP Network Card
Monitoring equipment alerts, controls and tracks current status of UPS from any off site location.
Video
Technical Specifications
Input
|
UPS-IND RP
|
1101
|
1102
|
1103
|
|---|---|---|---|
| Capacity (kVA / kW) | 1/0.9 | 2/1.8 | 3/2.7 |
| Input Voltage (V) | 110, 120 (optional 220) | ||
| Overload Protection | Thermo-magnetic switch | ||
| Range (Accepted) | – 25%, + 23% | ||
| Phases | 1 phase + neutral + ground | ||
| Frequency | 50/60 ± 5%, (50/60 auto adaptable) | ||
| Power Factor | 0.90 when empty > 0.95 at full load | ||
Output
|
UPS-IND RP
|
1101
|
1102
|
1103
|
|---|---|---|---|
| Overload Protection | Transfers the load to bypass | ||
| Output Power Factor | 0.9 | ||
| Voltage (Vca) | 110, 120 (optional 220) | ||
| Voltage Regulation Range | ± 1% | ||
| Frequency (Hz) | 50 / 60 + 0.2% (battery mode) | ||
| Wave Form | Pure sinusidal wave THD ≤ 3% (linear load) | ||
| Transfer Time (ms) | 0.0 (on line) | ||
| Overload | 125% for 60 s, 150% for 1 s | ||
Battery Bank
|
UPS-IND RP
|
1101
|
1102
|
1103
|
|---|---|---|---|
| Voltage (Vcd) | 24 | 72 | |
| Battery Type | Lead acid (sealed and maintenance free) | ||
| Battery Backup Time at Full Load (min) | 5 | ||
| Maximum Load Current (A) | 4 (battery monitoring system included) | ||
| Battery Bank | Internal | ||
Physical & Mechanical
|
UPS-IND RP
|
1101
|
1102
|
1103
|
|---|---|---|---|
| Audible Noise (dB) | < 55, to 1 meter | ||
| MTBF (h) | 130,000 | ||
| Operational Temperature (°C) | 0~40 | ||
| Relative Humidity | 0 ~ 95% without condensation | ||
| Maximum Operating Altitude (mamsl) | 2,300 at 100% & 3,000 at 96% | ||
| Cabinet | Steel with electrostatic baked epoxy coating | ||
| Dimensions, height x width x depth (mm) | 87 x 438 x 420 | 87 x 438 x 570 | |
| Weight (kg) | 8.89 | 17.1 | |
Technology
|
UPS-IND RP
|
1101
|
1102
|
1103
|
|---|---|---|---|
| Conversion Type | On-line double conversion (online) | ||
| Inverter Conmutation Elements | PWM technology with IGBT switched at 19.2 kHz | ||
| Inverter Configuration | H bridge | ||
| Inverter Type | Pulse width modulated (PWM) | ||
| Thermal Dissipation (kBTU/h) | 0.307 | 0.545 | 0.716 |
| Certifications | CE-IEC 62040 – 1, ISO 9001: 2015, NOM | ||
| Communication Interface | USB port, supports energy management software (optional: SNMP, RS485 & dry contact) | ||
| Monitor Screen | LCD | ||
| Alarm | Low battery, abnormal power supply, UPS malfunction & output overload | ||
| Protection | Low battery voltage, overload, short circuit, overheating | ||
