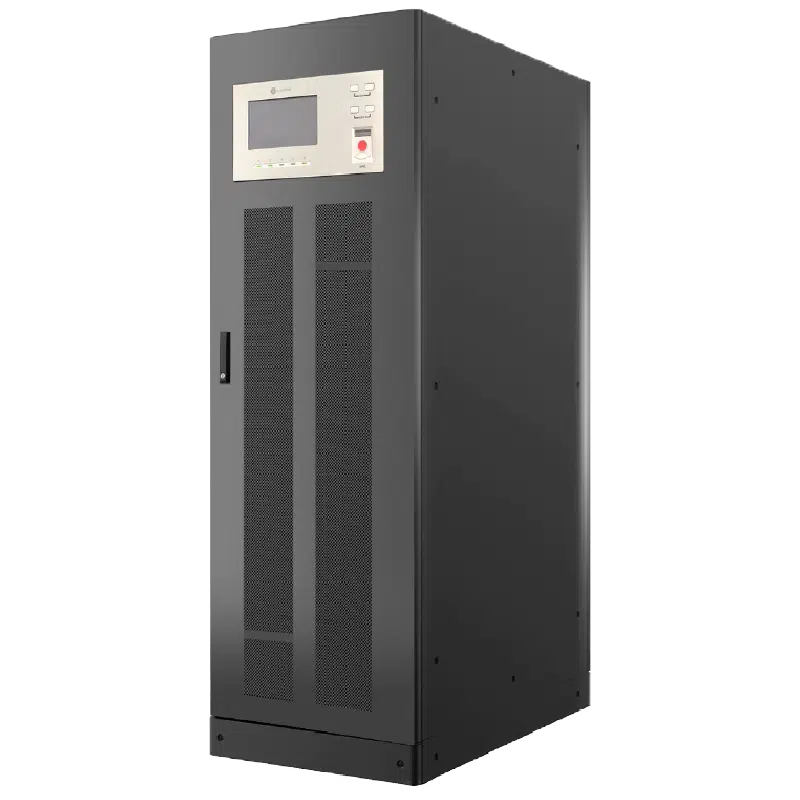

UPS-IND HF 1300 M1
Uninterruptible Power Supply (UPS)
UPS-IND HF 1300 M1
Uninterruptible Power Supply (UPS)
40 ~ 200 kVA
Capacity+/- 1%
Voltage regulation2 Year Warranty
The high frequency UPS-IND HF 1300 M1 provides power backup solutions for critical loads, thanks to its three-level inverter with PWM type IGBT technology provides adaptive management to higher powers, operating at high speed and higher efficiency.
- On-line double conversion
- 1.0 Power Factor
- High Efficiency of 97%
- Lower Footprint
- Dual DSP for high reliability and performance
- 2 Optional slot for SNMP and dry contact
- 3 Level IGBT Technology Inverter
- Dual input power supply: Mains and bypass
- Anti-corrosion resistant coating for all PCB boards
Features
On Line Double Conversion
Guarantees clean and stable voltage output despite irregularities on the input.
1.0 Power Factor
The 1.0 power factor ensures efficiency and performance, optimizing the electrical system
Dual DSP
Dual Digital Signal Processor (DSP) high precision and high speed control for maximum system performance.
High Efficiency
AC/AC efficiency up to 97%
3 Level IGBT
3 Level IGBT Technology Inverter
Doble Bypass
Automatic bypass ensures continuity of power to connected devices even in the event of equipment failure.
ECO-IND Mode
99% efficiency in ECO mode (when bypass voltage and frequency are within the permitted range).
Anti-corrosion PCB boards
Anti-corrosion resistant coating for all PCB boards
Parallelable Technology
Parallel by capacity N + 1 or redundancy N+X+1 (Up to 8)
Applications
Audiovisual Systems
Audiovisual Systems
Banks
Commercial buildings
Commercial Security Systems
Computer Rooms
Precision Instruments
Regional Office Building
Robotics
Technical Specifications
Input
| Modelo: UPS-IND HF |
1340 M1
|
1360 M1
|
1380 M1
|
13100 M1
|
13120 M1
|
13160 M1
|
13200 M1
|
|---|---|---|---|---|---|---|---|
| Capacity (kW/ kVA)2 | 40/40 | 60/60 | 80/80 | 100/100 | 120/120 | 160/160 | 200/200 |
| Voltage(Vca) |
120/208, 127/220, 220/380, 230/400, 254/440, 266/460, 277/480 |
||||||
| Overload Protection | Thermal magnetic input circuit breaker and Thermal magnetic bypass circuit breaker | ||||||
| Voltage Range (Vac) | +/- 20% (Line to Line) | ||||||
| Phase | Three Phase Star, 3 Phases + Neutral + Ground, optional: Delta (3 Phases + Ground) | ||||||
| Frequency Range (Hz) | 40 ~ 70 | ||||||
| Input Power Factor |
≥ 0.99 at full load |
||||||
| THDi | ≤ 3% | ||||||
Output
| Modelo: UPS-IND HF |
1340 M1
|
1360 M1
|
1380 M1
|
13100 M1
|
13120 M1
|
13160 M1
|
13200 M1
|
|---|---|---|---|---|---|---|---|
| AC to AC Maximum Efficiency | 97 % | ||||||
| Overload Protection | Thermal magnetic output circuit breaker | ||||||
| Output Power Factor | 1.0 | ||||||
| Voltage (Vac) |
120/208, 127/220, 220/380, 230/400, 254/440, 266/460, 277/480 |
||||||
| Voltage Regulation Range (Vac) | +/- 1 % | ||||||
| Frequency (Hz) | 60 +/- 0.1% (battery mode) (optional: 50 Hz) | ||||||
| Waveform | Pure sinosoidal wave | ||||||
| Harmonic Distortion THDv | ≤ 1% (linear load), ≤ 4% (non linear load) | ||||||
| Transfer Time (ms) | 0.0 milisegundos (true on line) | ||||||
| Connection Type | Three phase star, 3 phases + neutral + ground, optional: delta (3 phases + ground)3 | ||||||
| Overload |
101 a 105% continuous, 106 a 110% 60 min, 111 a 125% 10 minutos,126 a 150% 60 segundos, > 150% immediate switch to bypass |
||||||
Battery Bank
| Modelo: UPS-IND HF |
1340 M1
|
1360 M1
|
1380 M1
|
1300 M1
|
13120 M1
|
13160 M1
|
13200 M1
|
|---|---|---|---|---|---|---|---|
| Voltage (Vcd) | +/-192 (+/-168 a +/- 288 adjustable) | ||||||
| Battery Type | Lead acid (sealed & maintenance free) | ||||||
| Full load backup time (min) | 5 standard (extended time available upon request) | ||||||
| Battery Type | Lead Acid (Sealed & Maintenance Free) | ||||||
| Maximum Load Current (A) | 30 | 60 | |||||
| Battery Bank | Internal | External |
Physical & Mechanical
| Physical & Mechanical | 1340 M1 | 1360 M1 | 1380 M1 | 13100 M1 | 13120 M1 | 13160 M1 | 13200 M1 |
| Audible Noise (db) | <65 at 1 meter | ||||||
| Operating Temperature (ºC) | 0 to 40 | ||||||
| Relative Humidity | 0 – 95% without condensation | ||||||
| Maximum Operating Altitude (m.a.s.l.) | 2,400 at 100%, 3,000 at 96% | ||||||
| Cabinet | Baked electrostatic Epoxy coated steel | ||||||
| Dimensions, height x width x depth (mm) | 1600 x 950 x 1000 | 1800 x 1100 x 1220 | |||||
| UPS net weight (kg) | 480 | 720 | 960 | 1100 | 1200 | 1460 | 1610 |
Technology
| Modelo: UPS-IND HF | 1340 M1 | 1360 M1 | 1380 M1 | 1300 M1 | 13120 M1 | 13160 M1 | 13200 M1 |
| Inverter | level IGBT technology for higher efficiency and minimized interference to grid | ||||||
| Rectifier | High Efficiency PFC type with IGBT technology | ||||||
| Output Isolation Transformer | Optional | ||||||
| Battery Status | Real Time Online/Discharge Information | ||||||
| Thermal Dissipation (kBTU / h) | 4.1 | 6.1 | 8.2 | 10.2 | 12.3 | 16.4 | 20.5 |
| Internal Bypass | Two Bypass Modes: Automatic Static & Manual Bypass Switch for Maintenance | ||||||
| Paralleling | Parallelable by Capacity and/or Redundancy N + 1 (up to 8 units) | ||||||
| Certifications | CE-62040-1, CE 62040-2, ISO 9001:2015 | ||||||
| Communications Interface | RS485 + EPO, 5 dry contact output signals, 1 dry contact input, RS232, SNMP network card | ||||||
| Digital Touch Screen | Displays: Input and output voltage, Load capacity, Battery voltage, Operating Status Mimic and LEDs Indicators | ||||||
| Alarms | Low Battery, Abnormal Input, UPS Failure, etc. | ||||||
| Protection | Low Battery, Overload, Short Circuit, Over Temperature, etc. | ||||||
