AMCR 2300 GEN 3
Power Conditioners
AMCR 2300 GEN 3
Power Conditioners
150 ~ 200 kVA
Capacity+/-2%
Voltage regulation
10 Year Warranty
Manufactured in Mexico
Top tier precision & 100% reliability for critical loads
Robust design for demanding applications.
- Overload Protection
- Spike Supressor
- Automatic Shut Off
- 99% Efficiency
- Event History
- Voltage Correction
- Remote Monitoring
- Maintenance Bypass
- Digital Display Panel
Guaranteed protection for your devices and electronic equipment
Overload Protection
Protects against stress, overheating & damage due to voltage overloads of up to 400%, such as in motors, compressors or pumps with inherent fluctuating energy demands.
Spike Supressor
Also known as a surge suppressor, protects against aggressive transient voltage spikes that can permanently damage electronic components, cause overheating and significantly reduce lifespan of equipment connected directly to the power line.
Automatic Shut Off
Performs automatic shut off for the input to protect the load against dangerous voltage variations. When the voltage level comes down to safe levels, the unit reestablishes connection and operates normally.
99% Efficiency
Highly efficient operation allows for low cost operation and supports product longevity.
Event History
Integrated Energy Monitor allows easy visual access to updated electrical data that can greatly improve fact based decision making for changes and improvements in energy consumption as well as detect areas of opportunity for preventing faulty practices.
Voltage Correction
Instantaneous 8 millisecond voltage correction factor protects data and processing integrity.
Remote Monitoring
Convenient and timely information is consistently available. Ideal for off site locations
Maintenance Bypass
Bypass switch protects the load, allowing continuous power even in case of maintenance or repair.

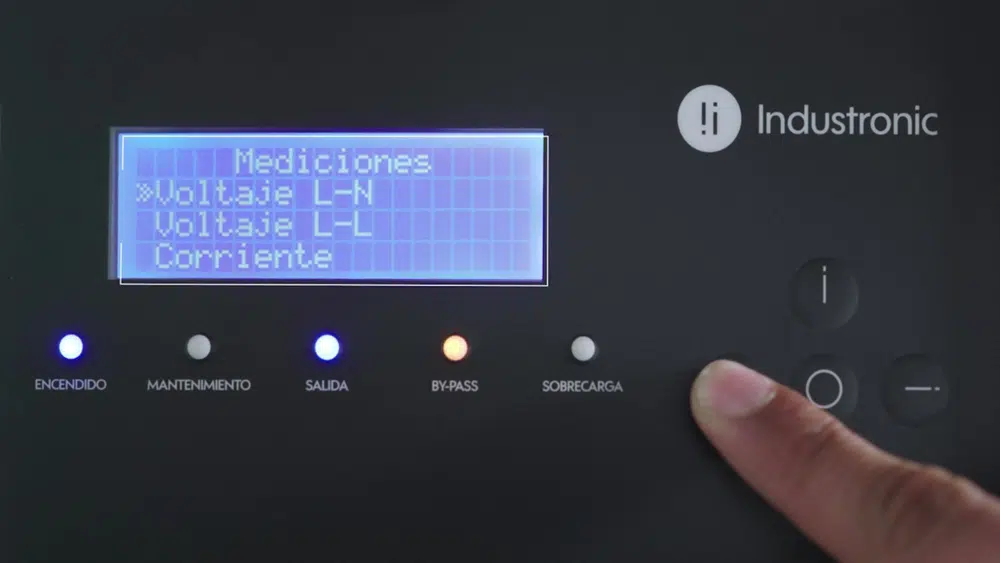

Digital Display Panel
Real time, user friendly digital screen, allows easy interaction with the equipment and displays useful information for quick response times to possible dangerous electrical situations as well as providing the ability for taking immediate preventive actions.
Video
Technical Specifications
Input
|
AMCR
|
23150 (120)
|
23200 (120)
|
23150 (480)
|
23200 (480)
|
|---|---|---|---|---|
| Capacity (kVA / kW) | 150/150 | 200/200 | 150/150 | 200/200 |
| Input Voltage (V) | 110/190, 115/200, 120/208, 127/220 | 254/440, 266/460, 277/480 | ||
| Overload Protection | Thermo-magnetic switch | |||
| Range (Accepted) | ± 15% | |||
| Operational Frequency | 60 ± 10%, does not alter frequency* | |||
| Harmonic Distortion | Less than 2 % THD | |||
| Power Factor | Does NOT alter, adaptable to load requirement | |||
* Tolerance available under evaluation of the Engineering department
Output
|
AMCR
|
23150 (120)
|
23200 (120)
|
23150 (480)
|
23200 (480)
|
|---|---|---|---|---|
| Voltage Regulation Range | ± 2% (typical) | |||
| Output Voltage (V) | 110/190, 115/200, 120/208, 127/220 or 254/440, 266/460, 277/480 | |||
| Power Supply Impedance | Less than 2% | |||
| Sustained High/Low Voltage Protection | Contactor or relay on the output, automatic shut off (varies by model) | |||
| Correction Time | Immediate, (8.3 milliseconds, 1/2 cycle) | |||
| Reset | Automatic (programmed at factory) | |||
| Reset Time | 3 second standard time ** | |||
** Factory configurable on request
Physical & Mechanical
|
AMCR
|
23150 (120)
|
23200 (120)
|
23150 (480)
|
23200 (480)
|
|---|---|---|---|---|
| Recommended Use | Domestic, commercial and/or industrial, non vibratory, indoor use | |||
| Transformers | Electrolytic copper magnetic wire and silicon steel sheet | |||
| Cooling & Ventilation | Natural convection | |||
| Cabinet | Galvanized steel sheet with tubular steel frame | |||
| Paint Finish | Primer and electrostatic baked epoxy powder coating or air-dry (varies by model) | |||
| Maximum Altitude Of Operation (mamsl) | 3,000 | |||
| Operational Temperature (°C) | 0 ~ 40 | |||
| Relative Humidity | 0 ~ 95% without condensation | |||
| Dimensions, height x width x depth (mm) | 1730 x 790 x 1060 | 1750 x 1570 x 820 | 1730 x 790 x 1060 | |
| Weight (kg) | 560 | 857 | 560 | 857 |
Technology
|
AMCR
|
23150 (120)
|
23200 (120)
|
23150 (480)
|
23200 (480)
|
|
|---|---|---|---|---|---|
| High Frequency Noise Protection | PI Filter | ||||
| Control Technology | Microcontroller | ||||
| Monitoring (Operational Status) | Display with LEDs / Ethernet (optional) | ||||
| Measurement Parameters | Voltage, current, power, frequency, power factor | ||||
| Electronic Commutation | TRIACs or SCRs (varies by model) | ||||
Electrical
|
AMCR
|
23150 (120)
|
23200 (120)
|
23150 (480)
|
23200 (480)
|
|---|---|---|---|---|
| Regulation | Line-Line & Line-Neutral | |||
| Spike Suppressor | Varistors on the output | |||
| Efficiency | 98% minimum | |||
| Overload Capacity | Up to 400% in intermittent startups | |||
